The Frog   Automaton

And Other SolidWorks Explorations

Overview

An automaton is a moving mechanical device that is relatively self-operating. In this project, by turning a crank, it triggers a series of gears to rotate and move elements in the automaton.

Timeline

April 2021

Tools Used

SolidWorks

Frog Automaton

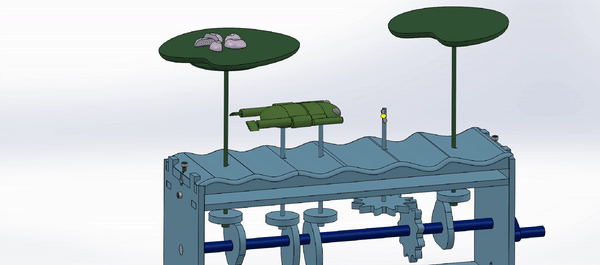

Stories Of A Lilly Pond4.JPG

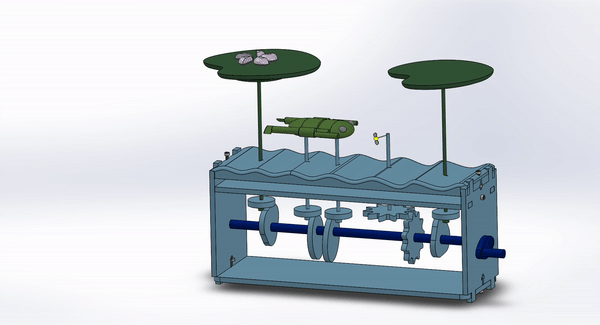

Stories Of A Lilly Pond.JPG

Rendered​


SolidWorks Animation

Frog Automaton

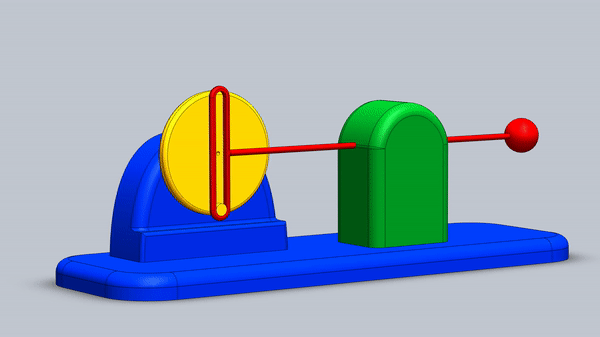

Scotch yoke front.JPG

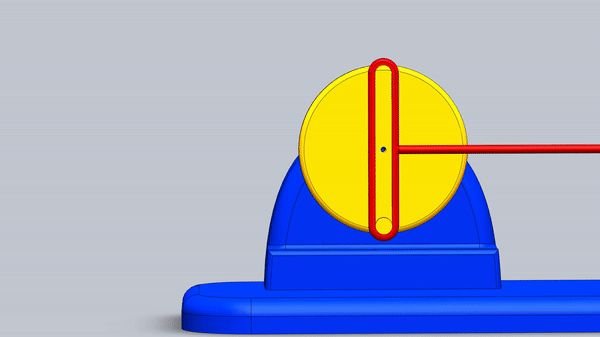

Scotch yoke side.JPG

Rendered​


SolidWorks Animation
